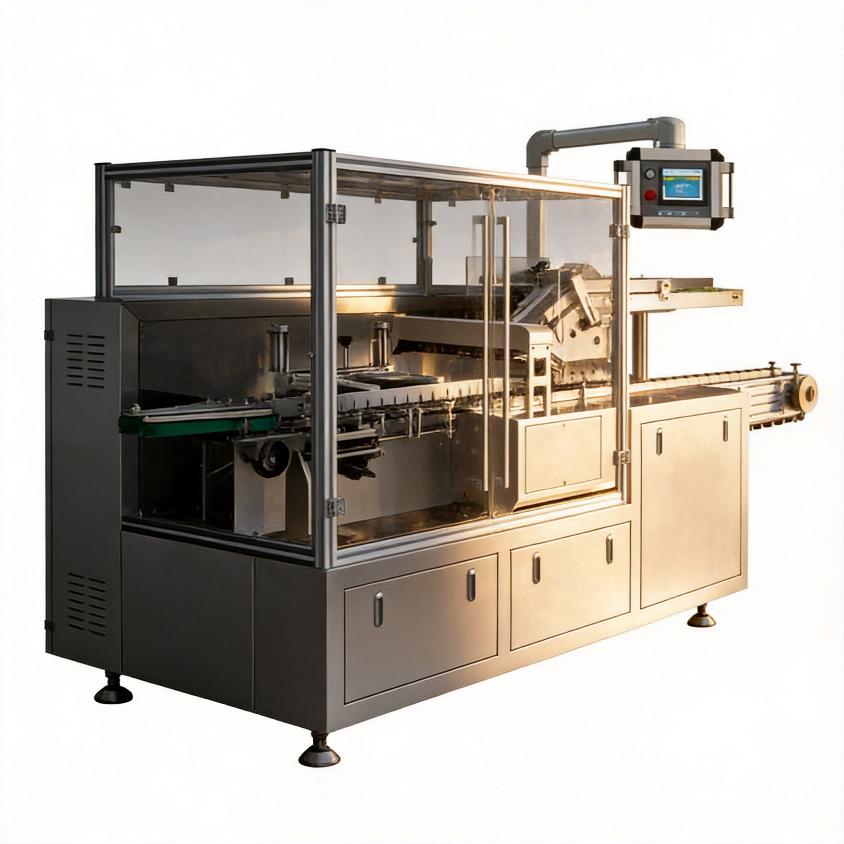

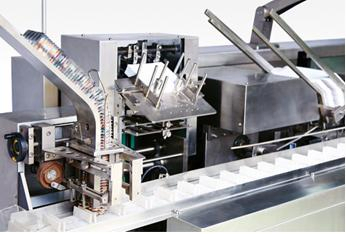

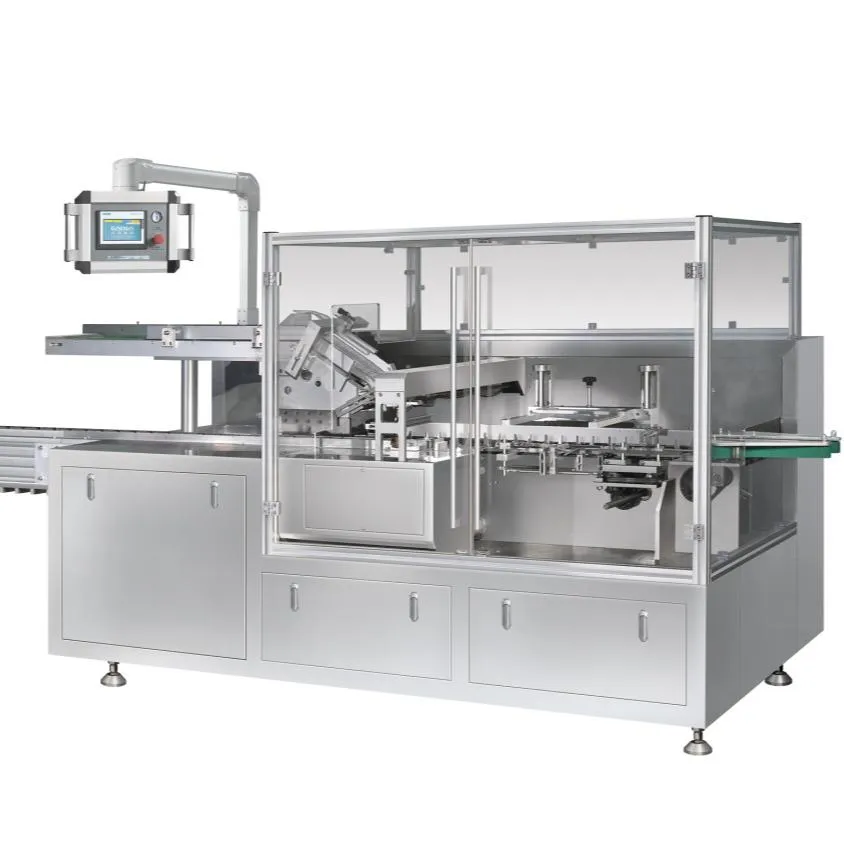

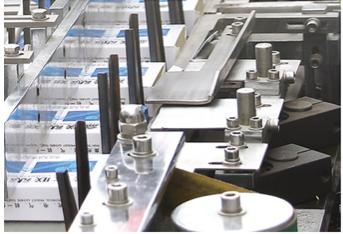

The automatic box packing machine is a high-tech product integrating light, electricity, gas and machine. Suitable for medicine bottle (round, square) cosmetics, food, health care products and similar bottled goods automatic packaging box. Its working process is the transmission of medicine bottles or articles; Transmission of drug instructions (automatic folding of 1-4 folds can be carried out); The carton automatically opens and transmits the medicine bottle and the folded instruction manual into the carton at the same time; And complete automatic batch number, two ends of paper tongue sealing and other complex packaging process. The appearance of the machine is all made of high quality stainless steel shell, the working face is closed by plexiglas doors and Windows, in strict accordance with the pharmaceutical industry "GMP" standard requirements of innovative design. The overload protection function is designed in the transmission part, and the emergency stop device is set up. The man-machine interface video screen is used in the control system, which ensures the personal safety of the operator.
| Parameter Name | Specification Details |
|---|---|
| Packing speed | 30-120 boxes /min |
| Carton quality requirements | 300-350g/m² [depending on the size of the carton] |
| Size range | (L*W*H) (65-180) mm* (35-85) mm*(15-50) mm |
| Stated book quality requirements | 60-70g/m² |
| Folded size range | (L*W) (80-250) mm *(90-170) mm |
| Fold range | (L*W) [1-4] fold |
| Compressed air working pressure | ≥0.6mpa |
| The gas consumption | 120-160 l/min |
| Power | 220 v, 50 hz |
| Main motor power | 0.75kw |
| Dimensions (L×W×H) | 4300mm*1100mm*1550mm |
| Weight | 1600kg |
